BEHRINGER WING DIGITAL MIXING CONSOLE RACK

Description

The Behringer WING Rack is a 4RU rack-mount digital mixing console that packs the complete processing engine, channel count, and connectivity of the flagship WING console into a road-ready, rack-mountable format, making it one of the most powerful and versatile digital mixers available at its price point.

At its core are 24 legendary Midas PRO mic preamps, the same circuits found in high-end Midas PRO series consoles, delivering 111dB dynamic range, ultra-low noise, and an audiophile-grade signal chain that elevates every source. Eight Midas PRO XLR outputs complete the analog I/O, while 4 headphone outputs make it ideal for IEM monitor mixing applications.

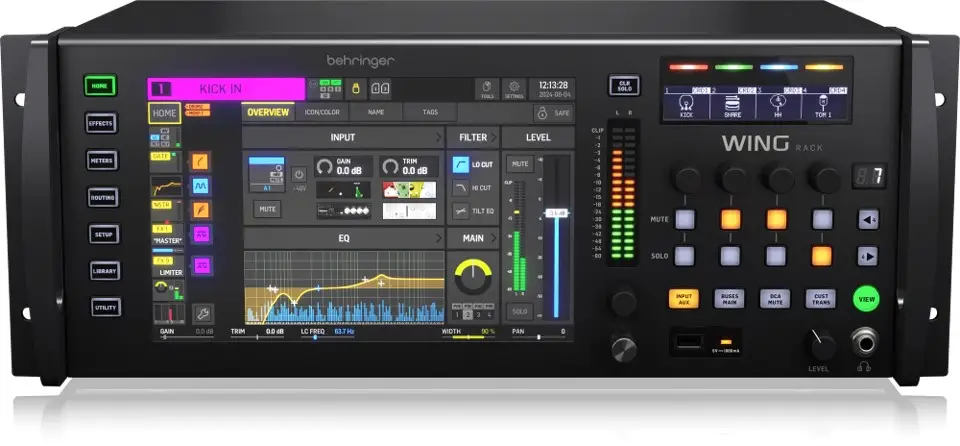

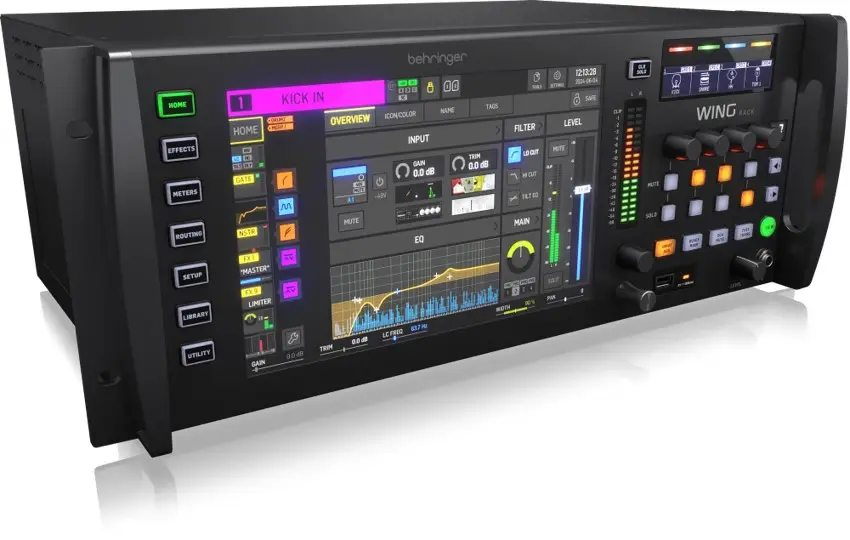

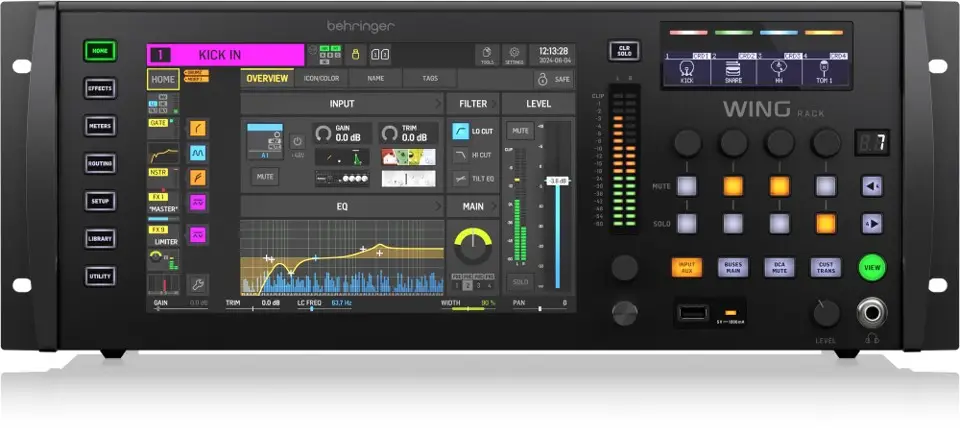

The 10.1-inch multi-touch capacitive TFT display (1280×800px) with adjustable swivel gives you full, intuitive console control without a laptop. It’s 40 stereo input channels, each featuring 5 variable plug-in processing slots, host iconic emulations of the Pultec EQ, SSL Bus Compressor, Neve EQ, LA-2A, 1176, DBX160, Distressor, and more, alongside the standard Gate, Dynamics, and 8-band parametric EQ in every channel, without consuming FX headroom.

The 16 true-stereo effects engines with 80+ algorithms give you world-class reverbs, delays, modulation, and dynamics on board, zero external gear required. The 48-channel USB audio interface delivers multitrack recording directly into Pro Tools, Logic, Cubase, Ableton, Nuendo, Studio One, or any ASIO/Core Audio DAW. The built-in dual SD card live recorder handles up to 64 tracks simultaneously for virtual soundchecks and live archiving.

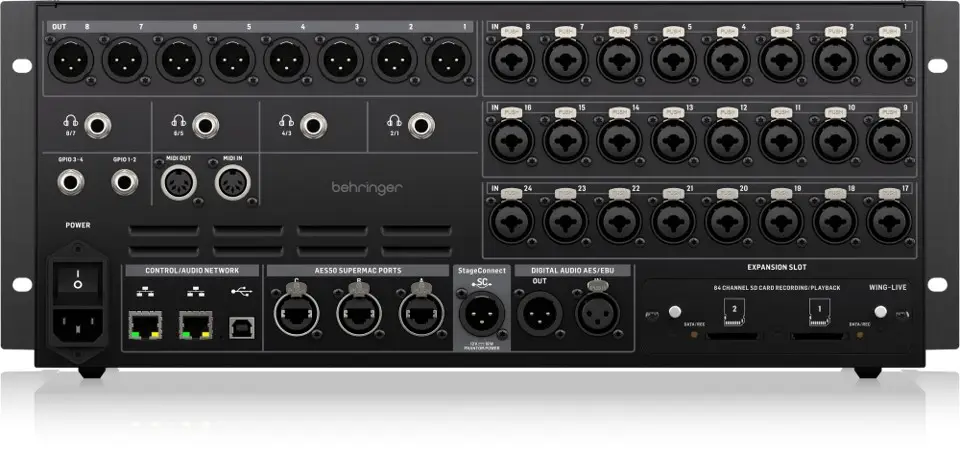

Need more inputs? The 3 AES50 SuperMAC ports expand the system to 144 inputs/outputs at 6-sample latency over standard CAT5, while the StageConnect port adds 32 bidirectional channels via a single XLR cable. The rear expansion slot supports optional Dante, MADI, and Waves SoundGrid networking cards for full professional infrastructure integration.

Key Features:

• 48 Stereo FlexChannels: configure any channel as mono, stereo, or M/S at no performance cost

• 24 Midas PRO Mic Preamps: 111dB dynamic range, ultra-low noise, industry-reference sound quality

• 16 True-Stereo FX Engines: 80+ algorithms including iconic vintage hardware emulations

• 10.1″ Multi-Touch Capacitive Display: swivel-adjustable, 1280×800px, full console control

• 5 Variable Plug-in Slots per Channel: Gate, Dynamics & EQ included, no FX headroom cost

• 48-Channel USB Audio Interface: DAW-ready for all major ASIO/Core Audio platforms

• Dual SD Card 64-Track Recorder: live recording and virtual soundcheck capability

• 3 AES50 Ports: 144 I/O channels via SuperMAC CAT5 at 6-sample latency

• StageConnect Port: 32 bidirectional channels over a single XLR/DMX cable

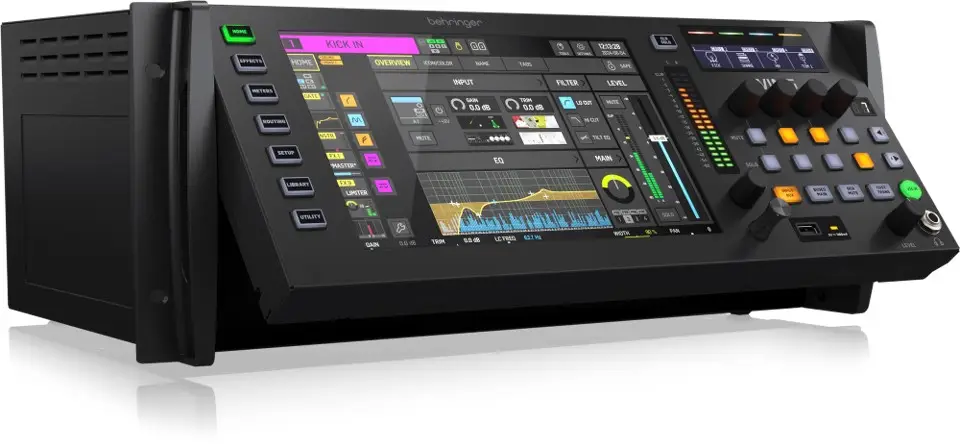

• 4RU 19″ Rackmount: adjustable front panel swivel for ergonomic operation in any rack position

• Dante/MADI/WSG Ready: ear expansion slot for optional 64-channel AoIP networking cards

• Free Remote Apps: WING-CoPilot, WING-Q, WING-Edit for iOS, Android, and desktop control

Whether you’re running front-of-house, monitors, broadcast, or studio sessions, order the Behringer WING Rack and bring flagship-level mixing power to any rack, anywhere.
