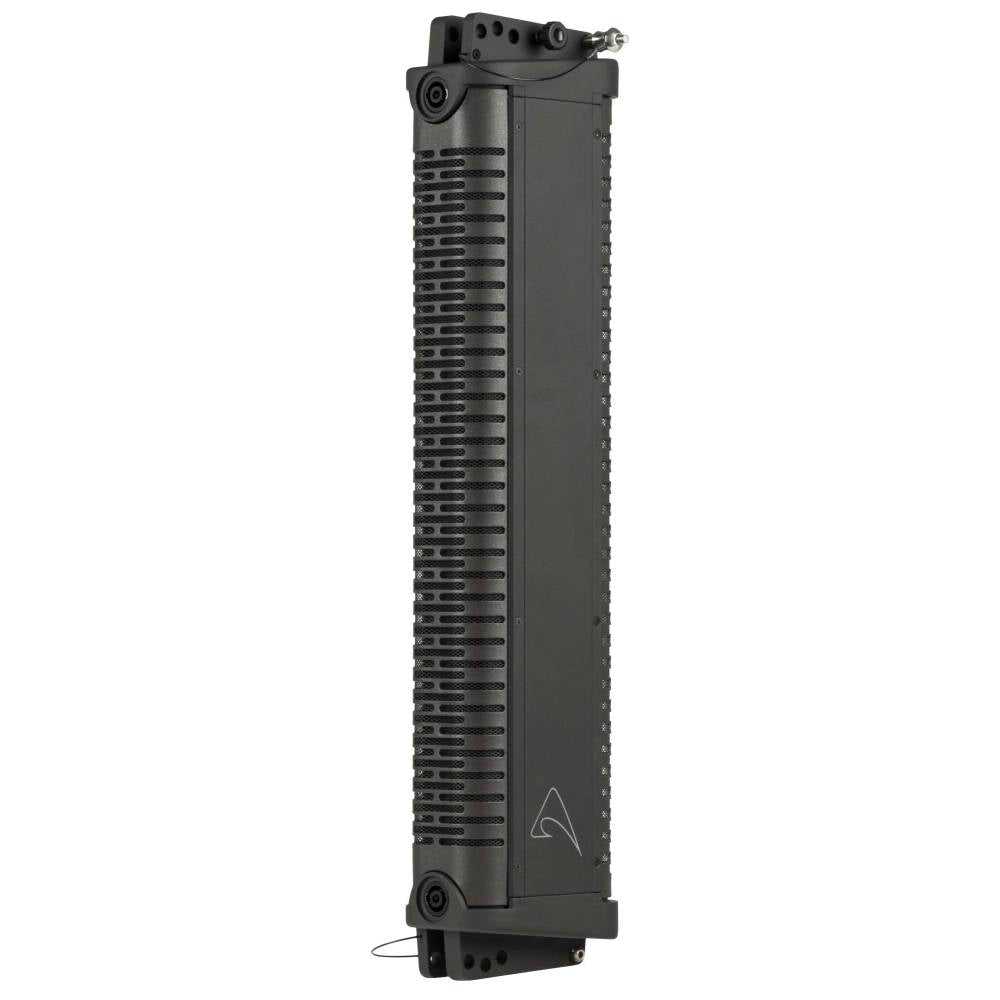

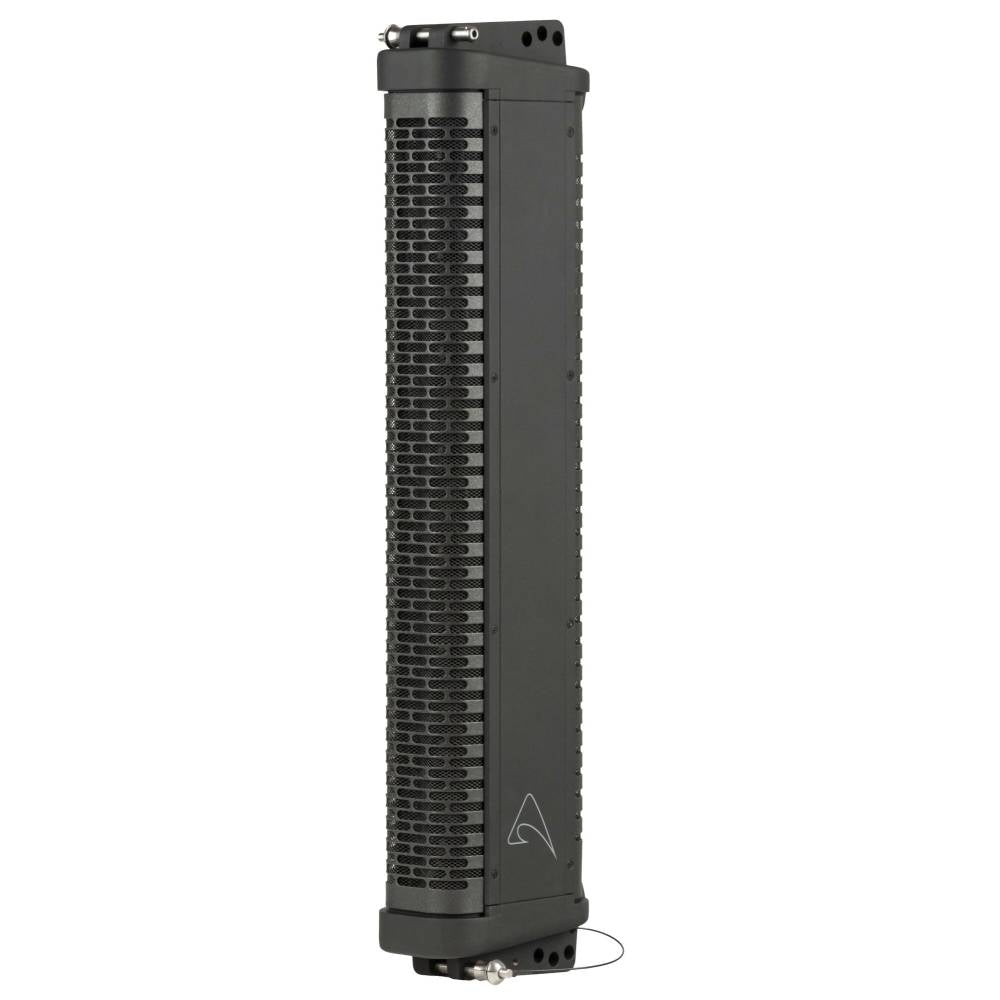

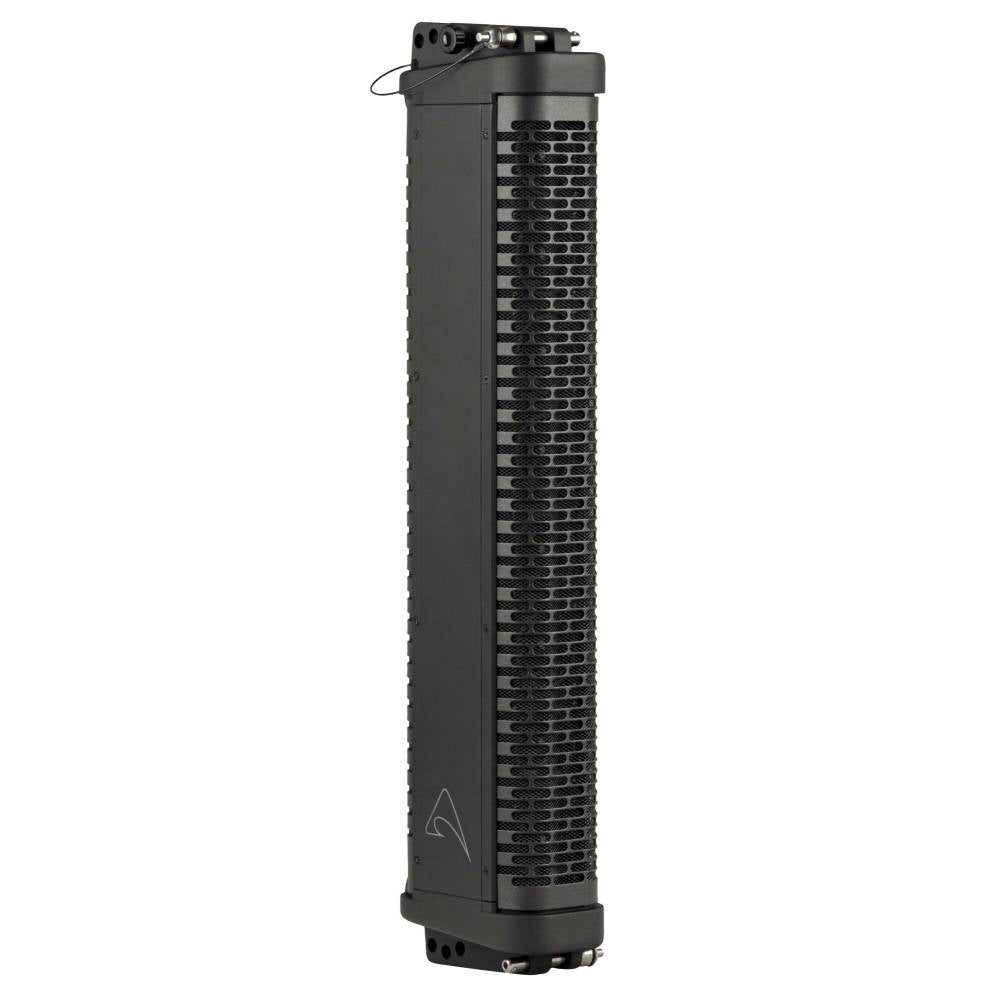

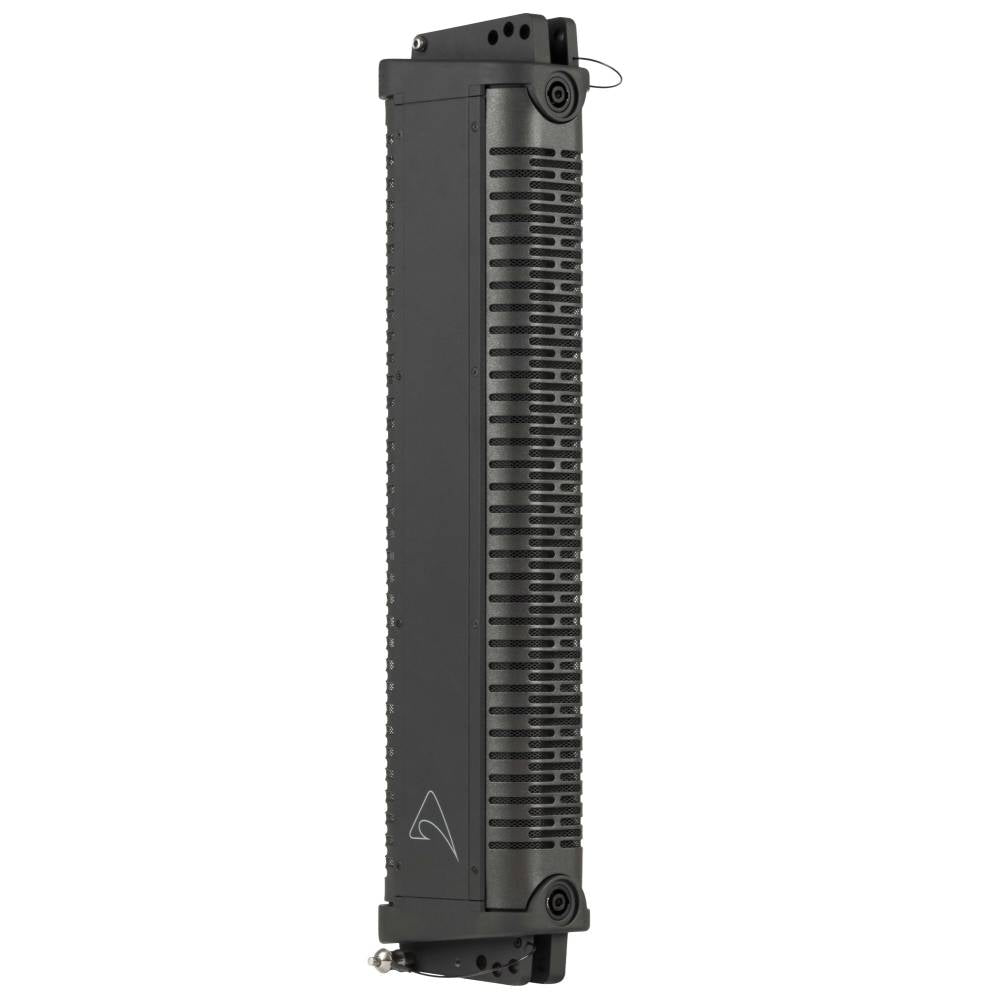

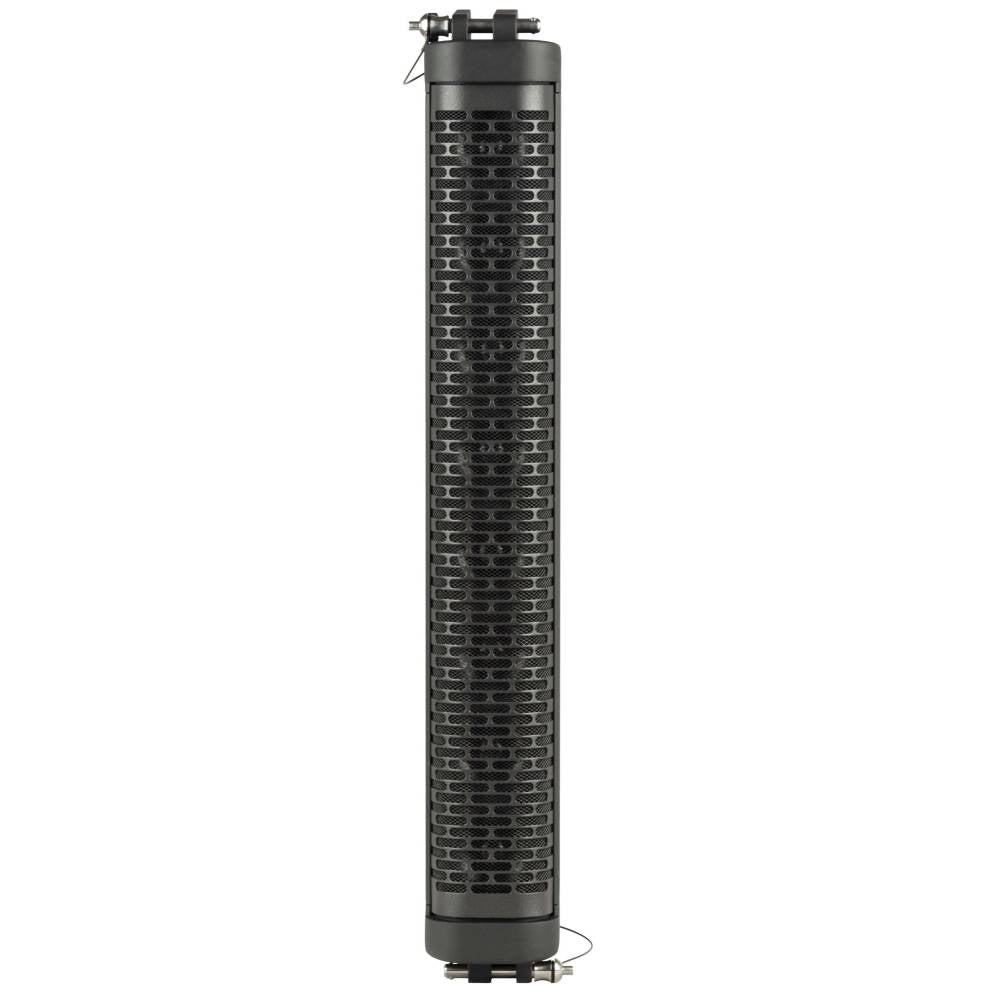

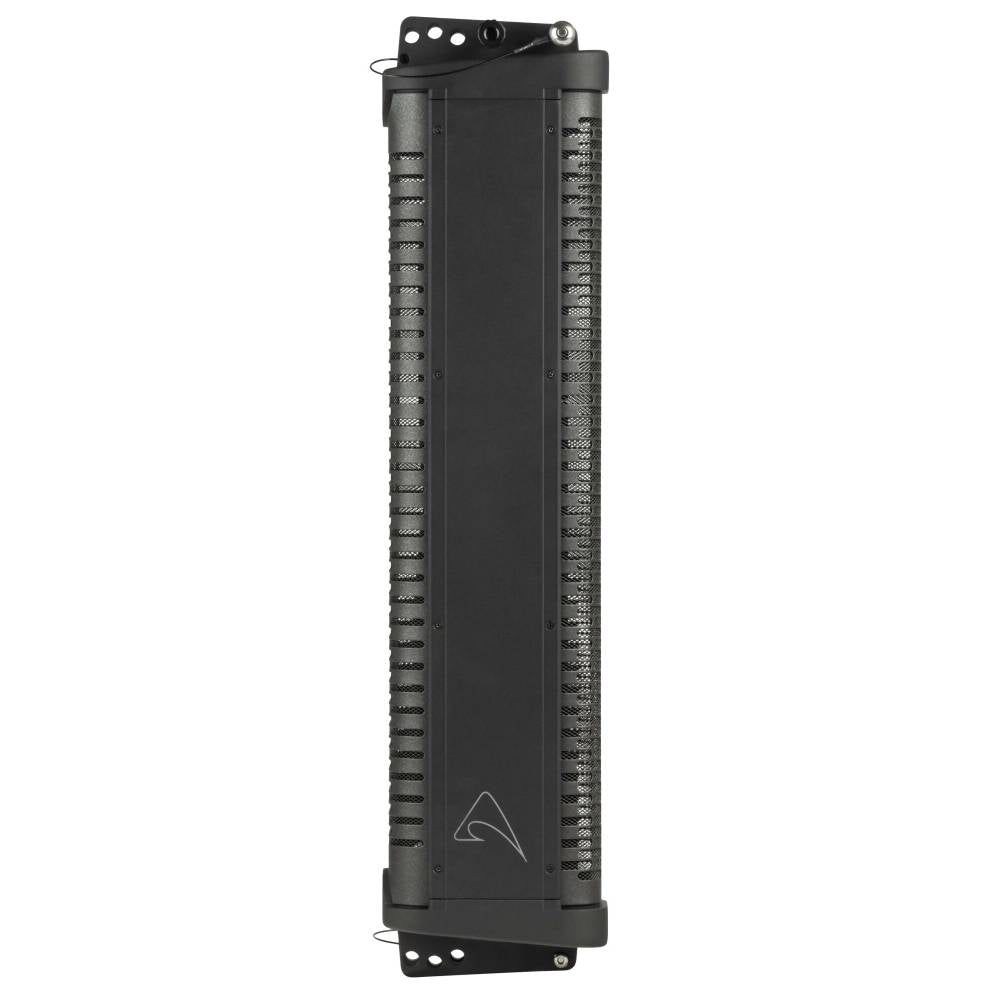

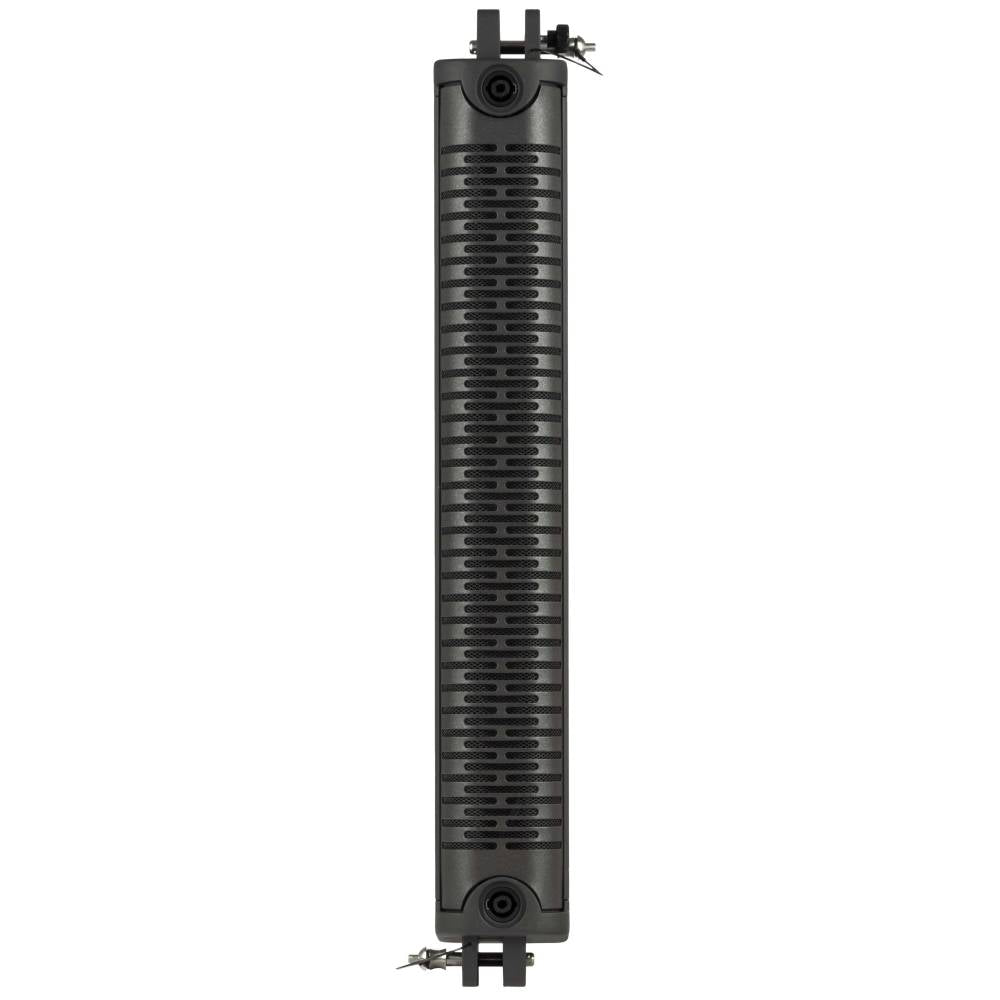

Axiom AX8CL Passive Line Array System
The AX8CL Line Array is a passive system equipped with eight 2.5” neodymium transducers with waterproof cones, designed for portable and permanently installed applications where high power and clarity are needed. The aluminium frame box structure ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproduction and natural cardioid behaviour. The wide horizontal dispersion makes the system flexible and adaptable to many different applications.
The AX8CL line array module has been designed to be used as a stand-alone or multiple-column system in fixed installations, front fill, or under-balcony applications, and for low-profile stage monitoring solutions. It can also be combined with AX16CL columns in multiple-column systems in different configurations.
The AX8CL can be driven by the SW212A processed active subwoofer. Up to eight AX8CL modules (or different combinations of AX8CL and AX16CL) can be driven by one channel of the SW212A. Different presets for different combinations are available for the built-in CORE2 DSP, which can be also remotely controlled using PRONET AX software.
Thanks to its elegant mechanical design the AX8CL can be easily transported, while the integrated suspension system makes its deployment very fast and simple. Each unit comes with two aluminium brackets and two pins that allow multiple array elements to be easily combined either together, with the AX16CL or with the matching SW212A subwoofer. The brackets allow inter-cabinet angles of 0°, 2° and 4°.
A complete range of accessories for transport, installation and connections are available.
Key Features:
- High Power passive portable Line Array element
- 8 x 2.5” neodymium transducers with waterproof cones
- 160W continuous power – 320W program power
- Line Array dispersion characteristics
- Acoustic transmission line backloading design, resulting in clean mid-bass reproduction and natural cardioid behaviour
- Wide horizontal dispersion
- The fast, easy-to-use integrated suspension system
- Aluminium frame structure
- Designed for mobile and installed applications
- Black or white finish
